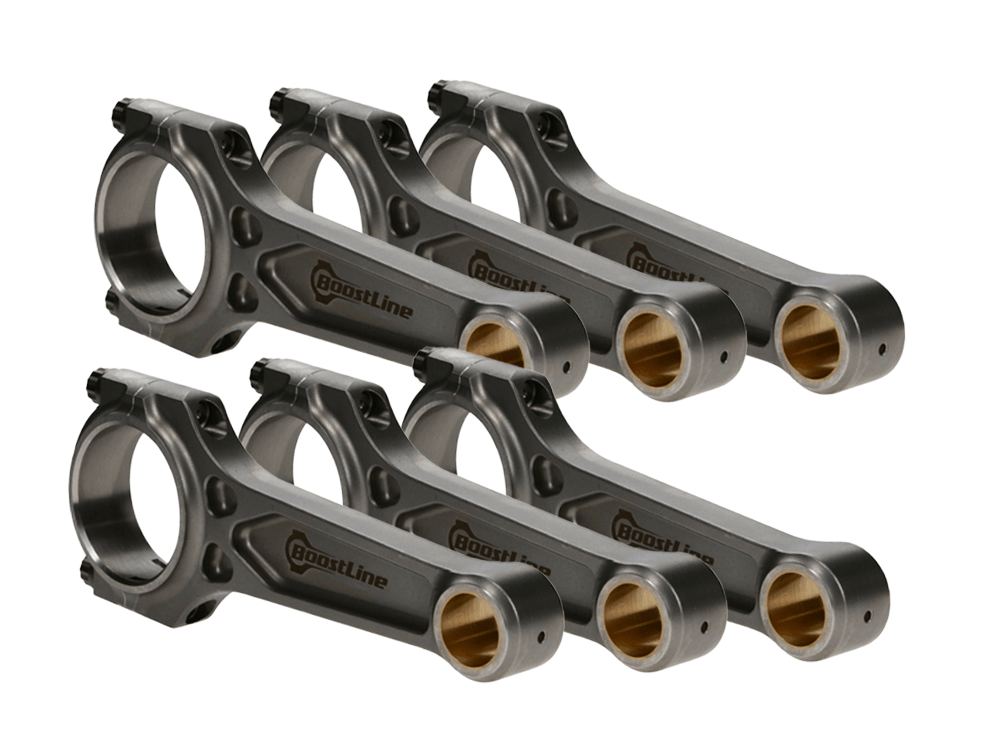

Boostline connecting rods

Overview

Brand:

Boostline

Manufacturer's Part Number:

BM5834-866

Part Type:

Connecting Rods

Product Line:

BoostLine Connecting Rods

Summit Racing Part Number:

BLN-BM5834-866

UPC:

193564461070

Connecting Rod Length Center to Center (in.):

5.834 in.

Connecting Rod Beam Style:

I-beam

Connecting Rod Material:

Forged 4340 steel

Wrist Pin Style:

Floating

Pin End Bore Diameter:

0.866 in.

Rod Journal Diameter (in.):

1.968

Big End Bore Diameter (in.):

2.1106

Quantity:

Sold as a set of 8.

Cap Retention Style:

Cap screw

Big End Width (in.):

0.941

Clearanced for Stroker:

No

Connecting Rod Bolt Brand:

ARP

Connecting Rod Bolt Diameter:

3/8 in.

Connecting Rod Bolt Material:

ARP2000 alloy

Fastener Tensile Strength (psi):

200,000 psi

Connecting Rod Bolt Head Style:

12-point

Advertised Horsepower Rating:

1,500 hp

Advertised RPM Rating:

10,000 rpm

Pin End Width (in.):

0.827 in.

Weight Matched Set:

Yes

Remanufactured:

No

Magnafluxed:

No

Connecting Rod Color:

Shot-peened

Notes:

Fits B58B30 engines only.

BoostLine Connecting Rods

BoostLine connecting rods are designed specifically for demanding turbocharged, supercharged, and big nitrous applications. The patented, 3-pocket body forged from premium 4340 steel incorporates the best features of both the H-beam (mass/weight) and I-beam (strength) designs. This provides 60 percent more bending strength compared to common H-beam rods. Each piece is heat-treated, shot-peened, and fitted with ARP-2000 cap screws (strong, malleable, and 220,000 psi rating) before final finish machining. Keep things straight with a set of BoostLine connecting rods (also available individually). Order the connecting rods in the model recommended for your specific engine size.

Features, items, and specs:

* High-quality Ampco bushing material used in the small end

* Pin clearance at between 9-ten-thousandths and 11-thousandths of an inch (allows engine builder to custom set wrist pin spec, should additional clearance be necessary)

* All BoostLine rods are individually inspected via a coordinate measuring machine (CMM) that is used to custom-match sets of rods to incredibly tight tolerances

* Each rod includes an inspection report from the Wiseco Piston quality team

* Rods are completely separated by thick foam for protection from shipping damage

* Each rod is vacuum-wrapped in plastic for corrosion protection

* Upgraded ARP 625+ bolts (260,000 to 280,000 psi) available
