Haltech Haltech IC-7 7in Color Dash Kit

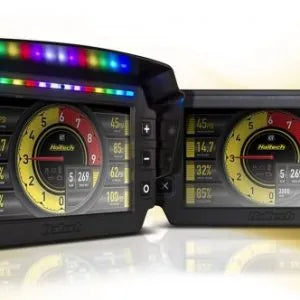

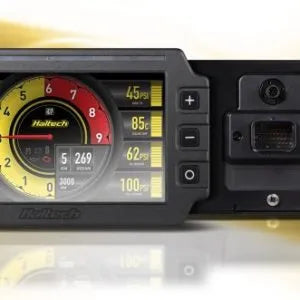

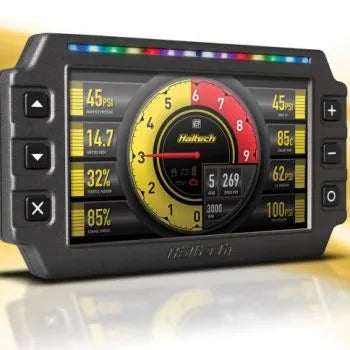

With a crisp, clear and full color display, the all new Haltech IC-7 Display Dash lets you see things in a brand new way.

Designed and manufactured in Australia with motoring enthusiasts in mind, the IC-7 offers market-leading features in a unique, state-of-the-art package.Featuring auto-dimming ambient light reactive brightness, user-programmable multi-color shift light bar, the IC-7 connects directly to all current Haltech ECUs via a CAN network.The IC-7 can also connect directly (via CAN) to most late model vehicles using the factory OBD-II port.

• Ideal replacement for individual analogue gauge clusters.

• Easy to install and configure.

• User adjustable brightness control with automatic dimming.

• User configurable channels, units and alarms.

• 14 programmable, seven color shift light LEDs.

• Controlled via easily accessible, face-mounted control buttons.

• Configuration via Haltech IC-7 software and USB cable.

• Screen size: 7in. Case size: 217 x 122mm (8.5″ x 4.8″)

• IP66 water resistance rating

The IC-7 is configured using a brand new, intuitive software. With this software you can change various aspects of the dash behavior including:

• Ranges of channels. Eg. the maximum RPM on a needle style tach or a bar graph.

• Red ranges for channels. Eg. when a numeric display changes to red, red zone on a tach.

• Display units. Eg. metric or imperial, Lambda or AFR.

• The channel to be displayed at each location on the screen.

• The connection method. Eg. Haltech CAN or OBD-II.

• Shift light RPM points and colors.

• Alarm thresholds, color for on-screen display and shift lights, manual or auto reset methods.

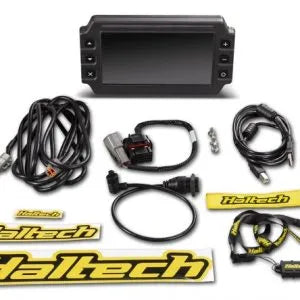

INCLUDES: Haltech IC-7 Display Dash, 34 Pin main connector harness, DTM-4 to DTM-4 CAN extension cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag.
