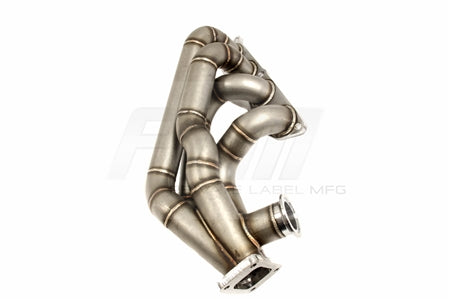

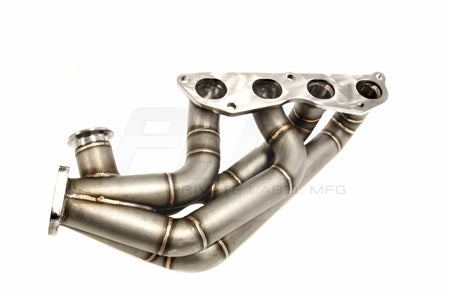

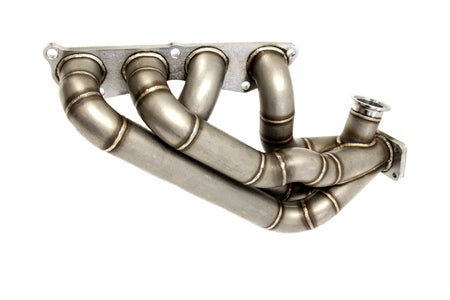

PLM Power Driven T3 Sidewinder Turbo Manifold K-Series K20 K24

Tuner shops agree - PLM K-Series Sidewinder is the best value on the market today. Used by many tuners & racers alike - this manifold has been dyno proven 700hp and runs 10s down the 1/4 mile. Dyno. Race. Proven.

PLM Private Label Mfg. Power Driven T3 Sidewinder Turbo Manifold (K-Series K20 K24) is designed to spool large turbos very quickly, producing massive midrange gains that carry to redline. This manifold is designed for any high power application, where huge power, huge torque and great spool is necessary.

This manifold design fits every Honda K-Series chassis from K-Swapped CRX, Civic, Integra, EP3 Civics and RSX.

Key Features:

PLM recommends using our downpipes for easy installation

Downpipes are available for RSX and K-Swap cars

For K-Series K20 K24 Motor

Made of 304 grade stainless steel

One year limited warranty

CNC machined manifold flange

Flange is 1/2 inch thick

Thick 8 gauge / Schedule 40 pipe

One piece design

44mm wastegate flange

Flanges surfaced for perfect seal

Fully ported

Low angle merge collector

Professionally TIG welded and assembled

Coolant lines may need to be modified or rerouted

Surface finish will be left as raw stainless steel

Installation note: Depending on your turbo size and cylinder head, you may need to upgrade your coolant housing to a smaller/billet version.
